Monochrome Stn Fstn Lcd 1604 Character MCU 16 Pin Display Module Lcd 16x4

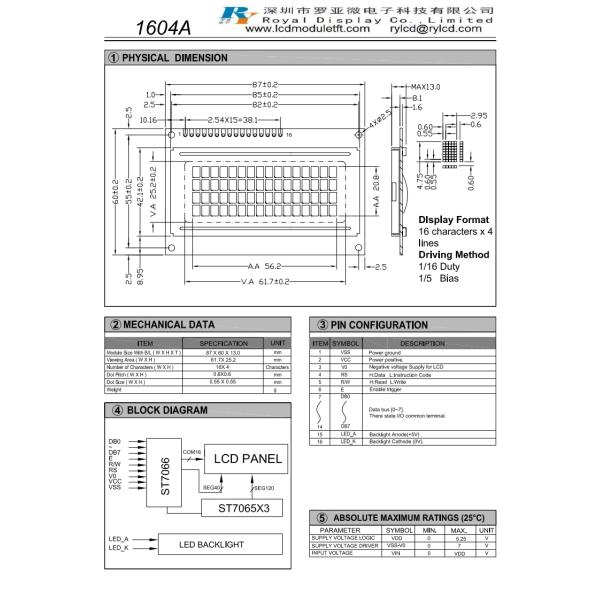

Specification Of 16x4 Character LCD Module
| Item | Standard Value | Unite |
| Outline Dimension | 87.0x60.0x14.0 | mm |
| Viewing Area | 61.8x25.2 | mm |
| Dot size | 0.56(w)*0.61(H) | mm |
| Dot pitch | 0.6(W)*0.7(H) | mm |
Character size | 2.95x4.75 | mm |
| Operation Voltage | 0-5.5 | V |
| Operation temperature | -20-70° | °C |
| Storage Temperature | -30-80 | °C |
16x4 LCD Display Service Advantages
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/ T, Western Union,L/ C, PayPal.
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Warranty: Usually, product warranty for one year.
7. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
8. If mass production has any quality problem, customer can return it.
Packaging & Shipping & Delivery
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS/ DHL/ FEDEX/ TNTExpress service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready- made Sample: within 1 week
Custom Sample: 1- 2 weeks
Mass production: 3- 4 weeks
16X4 Character LCD Accessories
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
Warranty
Royal Display offers the original purchaser who has purchased a product from the lcd module tft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
FAQ:
Q: How long can I expect to get the 16x4 Character LCD sample?
A: Contour drawing: 2-3 days Sample time: 10-15 business days
Q: Will you offer free sample?
A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.
Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
Q: How to place orders?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1) Product information-Quantity,part number
2) Delivery time required.
3) Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.
Product Tags:
|
|
Monochrome STN FSTN 1604 Character LCD Display Module ST7065 / ST7066 Controller Images
|
